1300 cubic yard Self Propelled Hiopper Dredge - 12917bg
Vessel Description

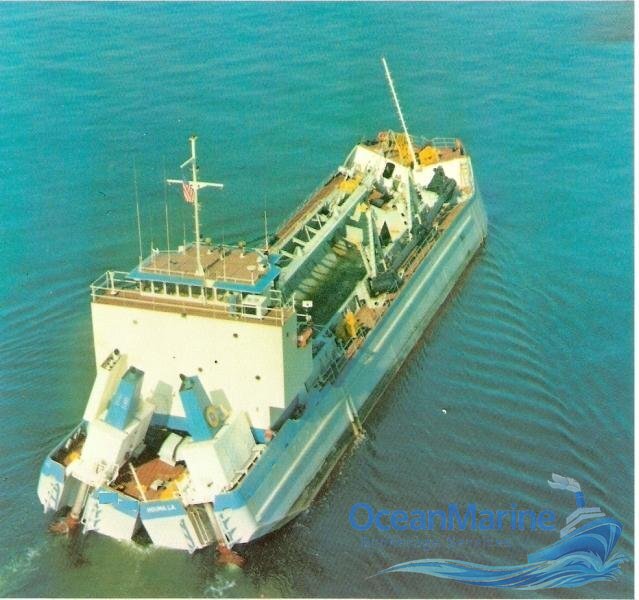

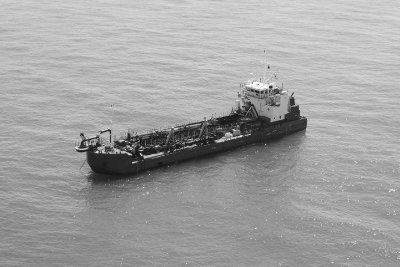

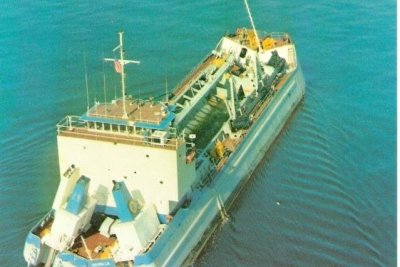

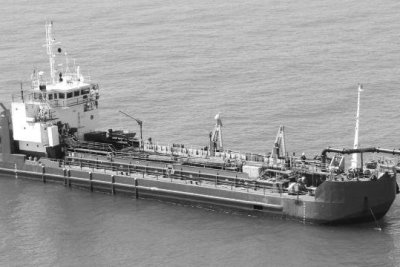

Self-propelled hopper dredge with a 1,300 cubic yard hopper capacity and both bottom dump and bow discharge capabilities. Dredging equipment includes a 700 HP dredge motor, 64" suction head, 22" suction pipe, and 20" discharge pipe.The vessel includes accommodations for 15, extensive survey equipment, and a substantial inventory of spare parts and components. Discharge: Bottom Dump and Bow Discharge Capability
Maximum Effective Dredging Depth: Approximately 65'. Fuel Capacity: 25,000 gallons. Potable Water Capacity: 7,500 gallons. ABS International Load Line: Valid through September 2026
USCG Certificate of Inspection: Valid through January 2027. Discharge: Bottom Dump and Bow Discharge Capability. Maximum Effective Dredging Depth: Approximately 65'. Hopper Capacity: 1,300 CY
Hopper Length: 105'. Hopper Width: 22'. Overflow Minimum: 760 CY. Pump-Out Capability. Dredge Motor: 700 HP. Number of Drag Arms: 1. Maximum Digging Depth @ 45°: 65'. Suction Head: 64". Suction Pipe I.D.: 22"
Discharge Pipe I.D.: 20". Available Pump HP: 1 @ 700 HP. Pump RPM – Dredging: 290 RPM. Pump RPM – Pumping Out: 360 RPM. Pump Impeller Diameter: 48". Jet Pump: 180 HP. Survey Equipment (1) Ohmart VEGA Nuclear Density Gauge. (2) VEGAPULS 65 Ullage Sensors. (2) Trimble SPS865 Receivers – Installed (3) GPS Antennas & Cables – Installed. (4) Rosemount Pressure/Suction Transmitters. (1) HD25A Sensor – Installed on Davit(2) Pitch/Roll Inclinometers in Shared Housing. (2) RPM Sensors(2) Hannay Hose Reels for 1/4"–3/8" Hose
